How to Deploy a Trace Node for Moonbeam on OnFinality

OnFinality
5 min readJun 7, 2023

OnFinality is a blockchain infrastructure platform that saves web3 builders time and makes their lives easier. We deliver easy-to-use, reliable and scalable API endpoints for the biggest blockchain networks and empower developers to automatically test, deploy, scale and monitor their own blockchain nodes in minutes.

Introduction

In this How-To Guide, you will learn how to run your own Dedicated Trace Node for the Moonbeam Network, enabling you to access the non-standard EVM Trace, Debug, or TxPool RPC methods. This guide should be used alongside Moonbeam’s official guide which is kept up to date and more detailed.

What is Moonbeam? ($GLMR)

Moonbeam is a smart contract platform for building cross-chain connected applications that can access users, assets, and services on any chain. By uniting functionality from Ethereum, Cosmos, Polkadot and more into a single platform, Moonbeam solves today’s fragmented user experience — unlocking true interoperability and paving the way for the next generation of applications.

Why Run A Moonbeam Trace Node on OnFinality

Geth’s debug and txpool APIs and OpenEthereum’s trace module provide non-standard RPC methods for getting a deeper insight into transaction processing. As part of Moonbeam’s goal of providing a seamless Ethereum experience for developers, there is support for some of these non-standard RPC methods.

To use the supported RPC methods, you need to run a tracing node, which is slightly different from running a full node. There is a different Docker image, called purestake/moonbeam-tracing that needs to be used for tracing. Additional flags will also need to be used to tell the node which of the non-standard features to support.

OnFinality’s Dedicated Trace Node takes care of all that for you, and along with our Lightning Restore snapshots, will have you tracing in a few clicks.

Useful Links

HOW TO DEPLOY A MOONBEAM TRACE NODE

1. Log in to OnFinality

Create an account and log in to OnFinality, then add a payment method.

2. Create Dedicated Node

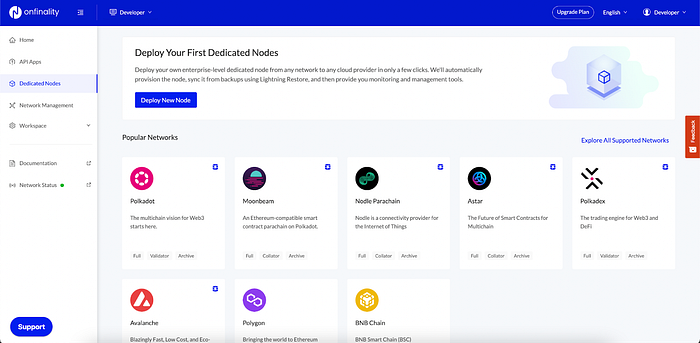

Select the “Dedicated Nodes” menu and press “Deploy New Node”.

2.1 Select Network

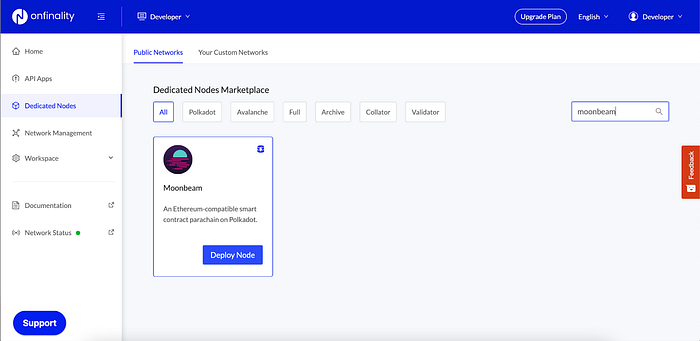

Search for “Moonbeam” and then click “Deploy Node”.

2.2 Configure Moonbeam Node

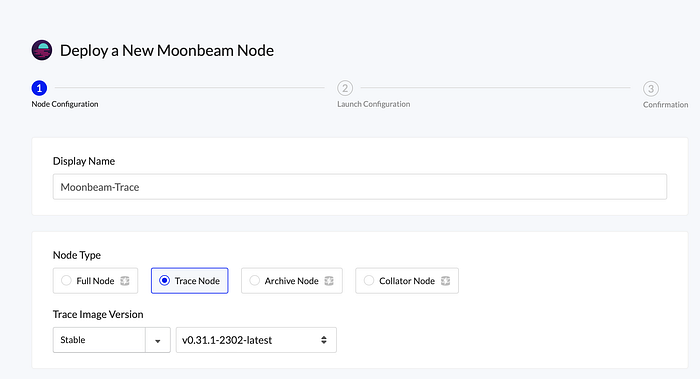

Enter an easily identifiable Display Name and select the “Trace Node” Node Type. Select the latest Image Version.

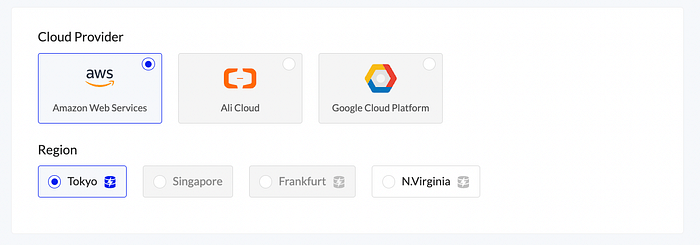

Scroll down to set the Cloud Provider and Region where you will run the node.

Look out for the Lightning Restore indicator to get the node running as fast as possible.

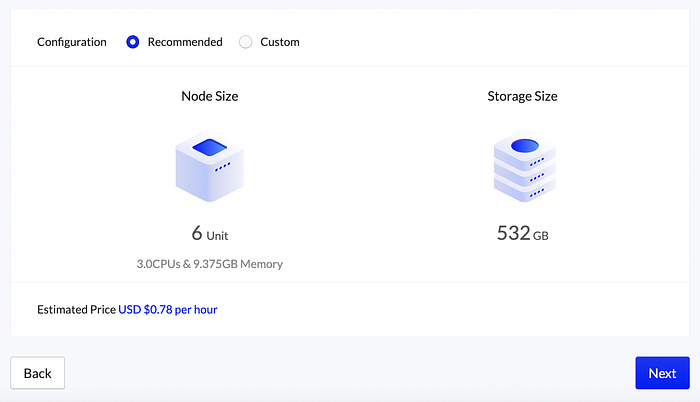

Use at least the recommended configuration suggested by the network, then press “Next”.

2.3 Configure Launch Arguments

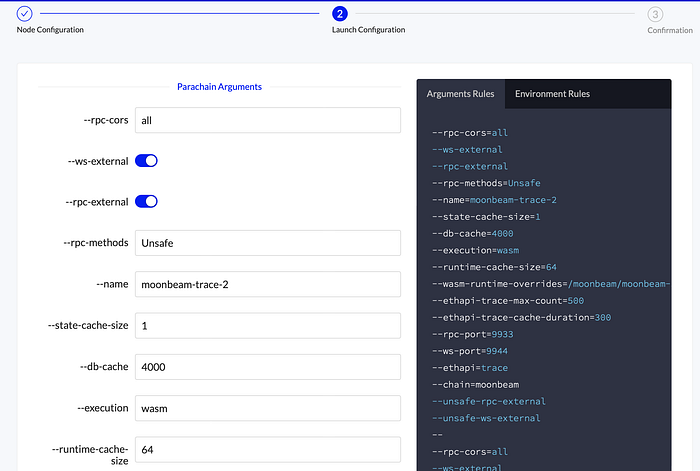

Next, review the node’s Launch Configuration. The recommended settings are usually sufficient and have all relevant arguments for trace enabled, but we recommend comparing with Moonbeam’s official guide to be certain.

Access the debug or txpool endpoints by updating the — — eth-api argument

  • — — ethapi=trace *Default — optional flag that enables trace_filter
  • — — ethapi=debug — optional flag that enables debug_traceTransaction, debug_traceBlockByNumber, and debug_traceBlockByHash
  • — — ethapi=txpool — optional flag that enables txpool_content, txpool_inspect, and txpool_status

Press “Next” at the bottom of the screen.

2.4 Review Node

Finally, review the node’s settings and press “Deploy Node”.

3. Copy Dedicated Node’s RPC Endpoint

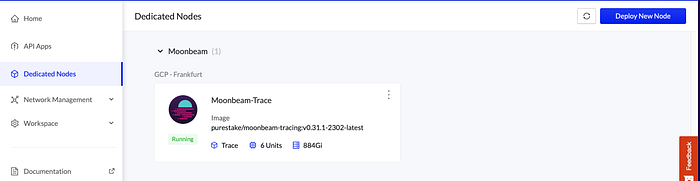

Once your node is successfully deployed, you can find it in the “Dedicated Nodes” section on our portal.

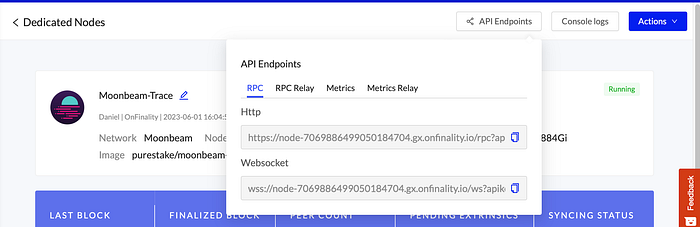

Once the status has changed to Running, you can find the RPC endpoint by clicking on the node and opening the “API Endpoints” window.

Note: The endpoints are secured by an API Key and should be kept private.

Congratulations!

You’re ready to start tracing. For more information on how to use these methods with a tracing node, check Moonbeam’s Debug & Trace guide.
